Home > Product > omniwheel > CMA series > CMA-45
  • CMA-45 Omni Wheel
  • Product Description
  • CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
  • Feature
  • integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-4500KGindustrial-grade quality
  • Dimension
  • Detailed Images
  • Diameter: 457.2mm Wide: 246mm
    Wheels: 8 Bearing Type: heavy duty Rolling Bearing
    Wheel Material: Polyurethane Hub Material: carbon steel
    Flange Plate Thinckness: 17mm Flange Plate Diameter: 189mm
    Flange Cavity Inner diameter: 221mm Typical Middle Hole Size: 110mm
    Weight: 76Kg Load: 1900Kg
    Hub Surface Treatment: High-Temperature Painting Flange Screw: 8-M14*1.5 Hub Bolt

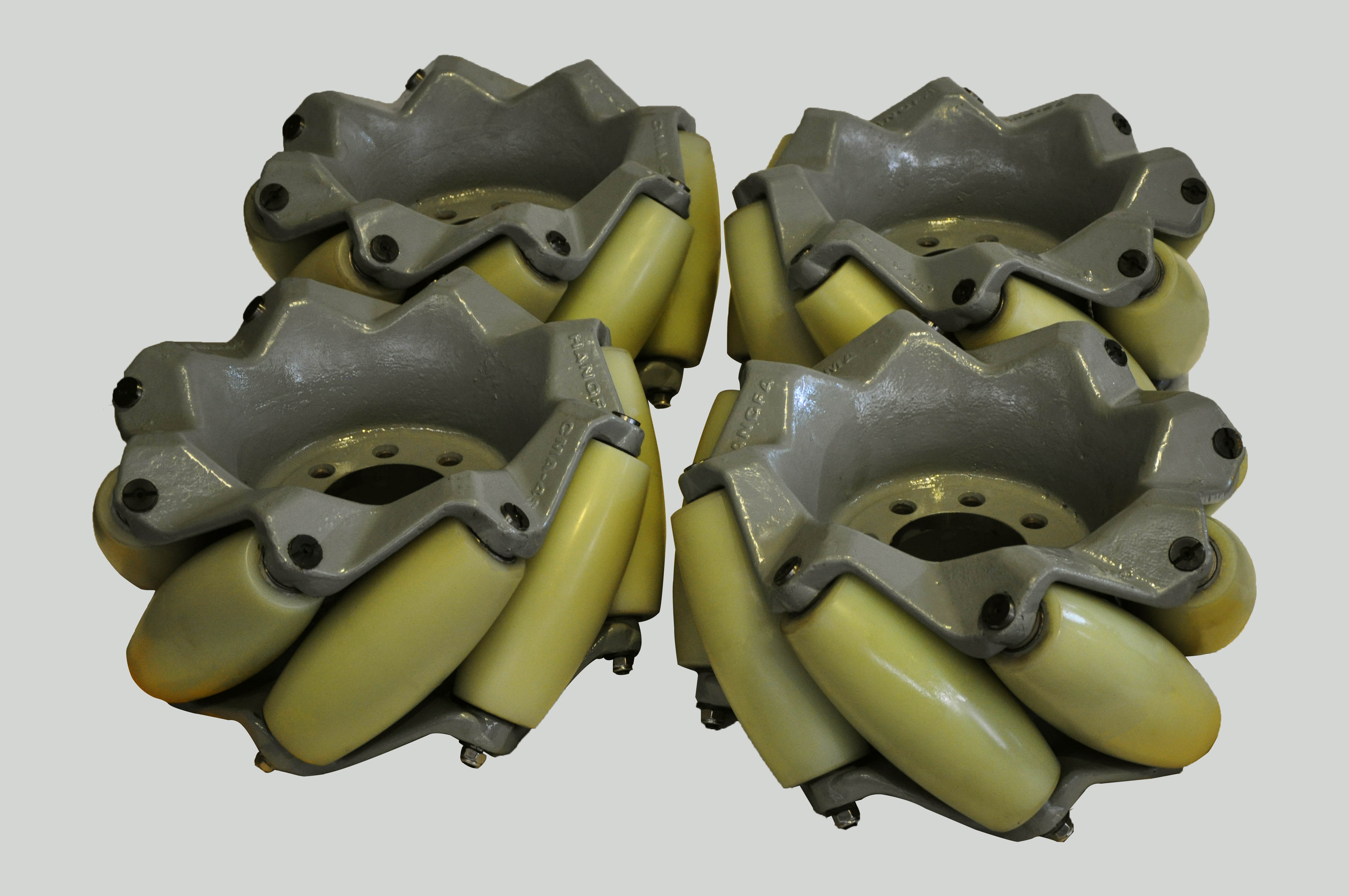

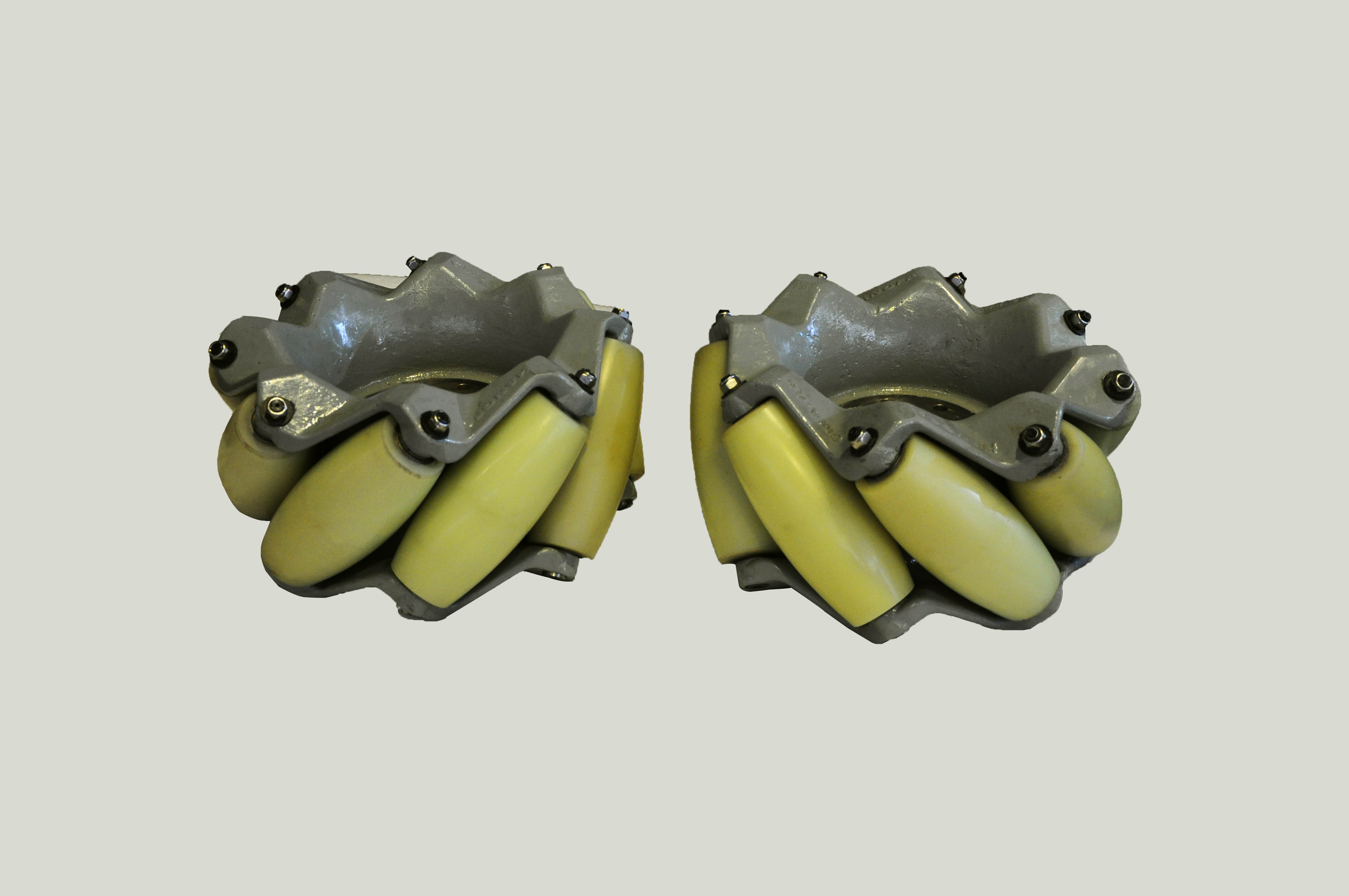

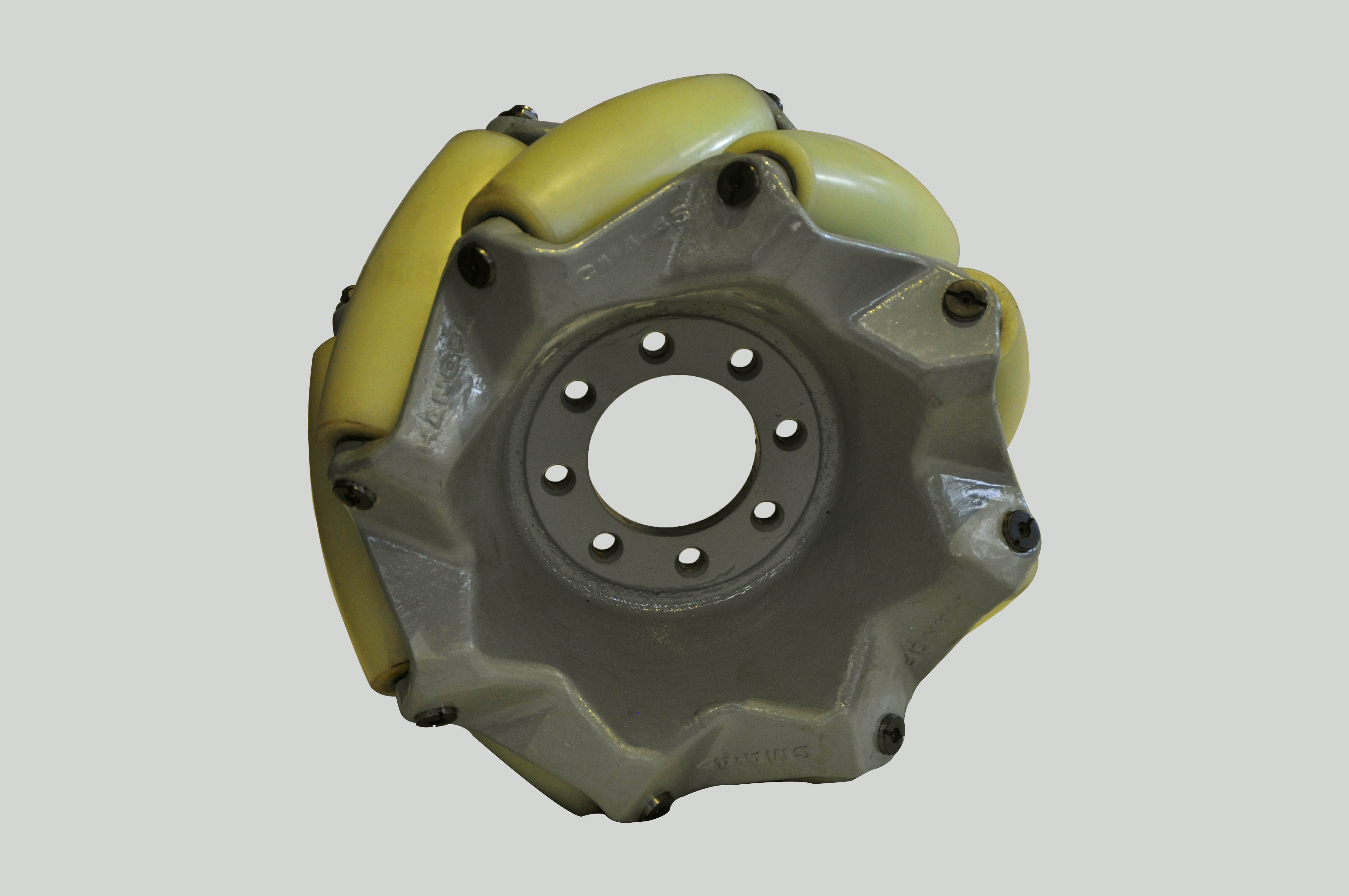

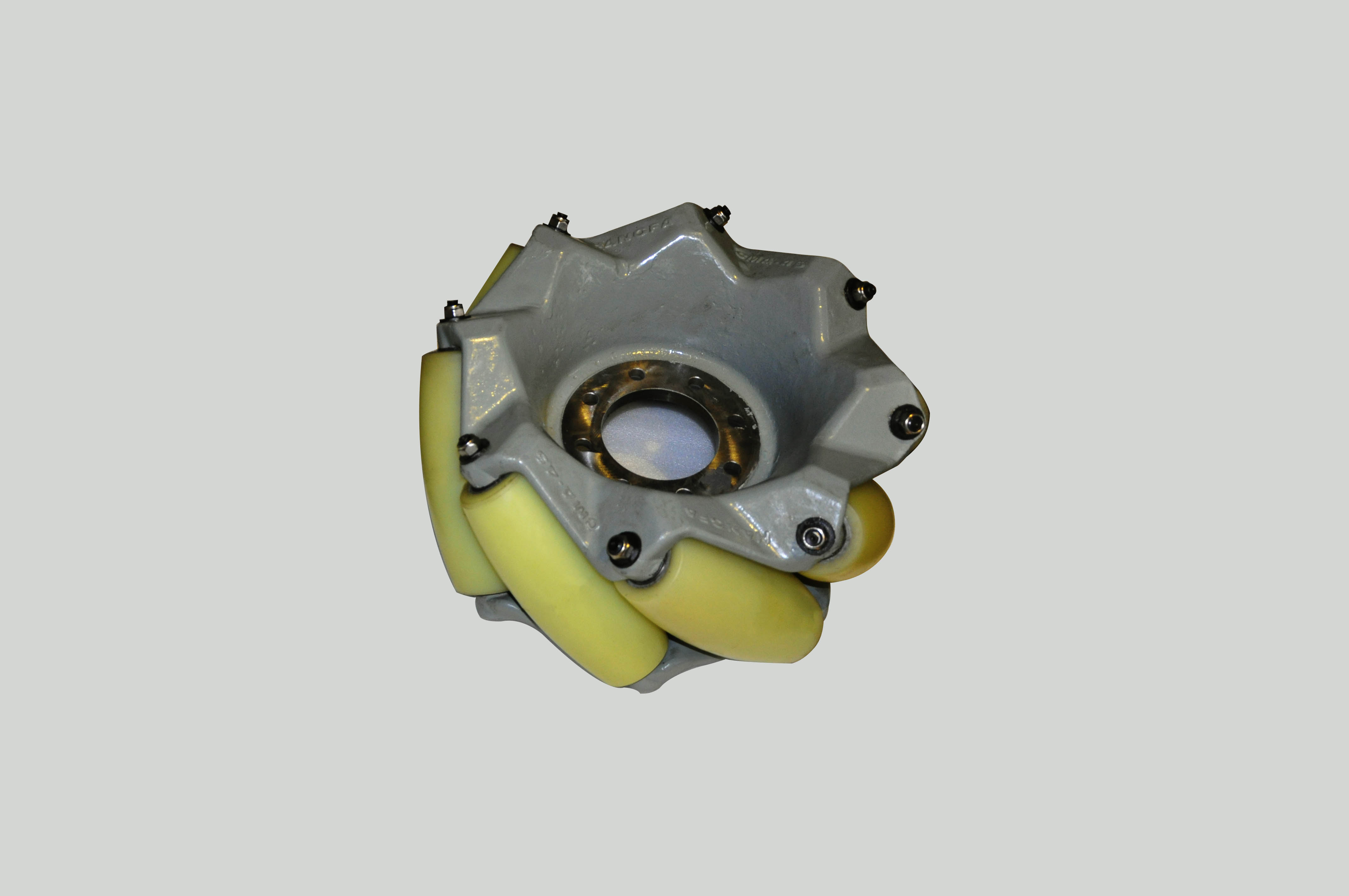

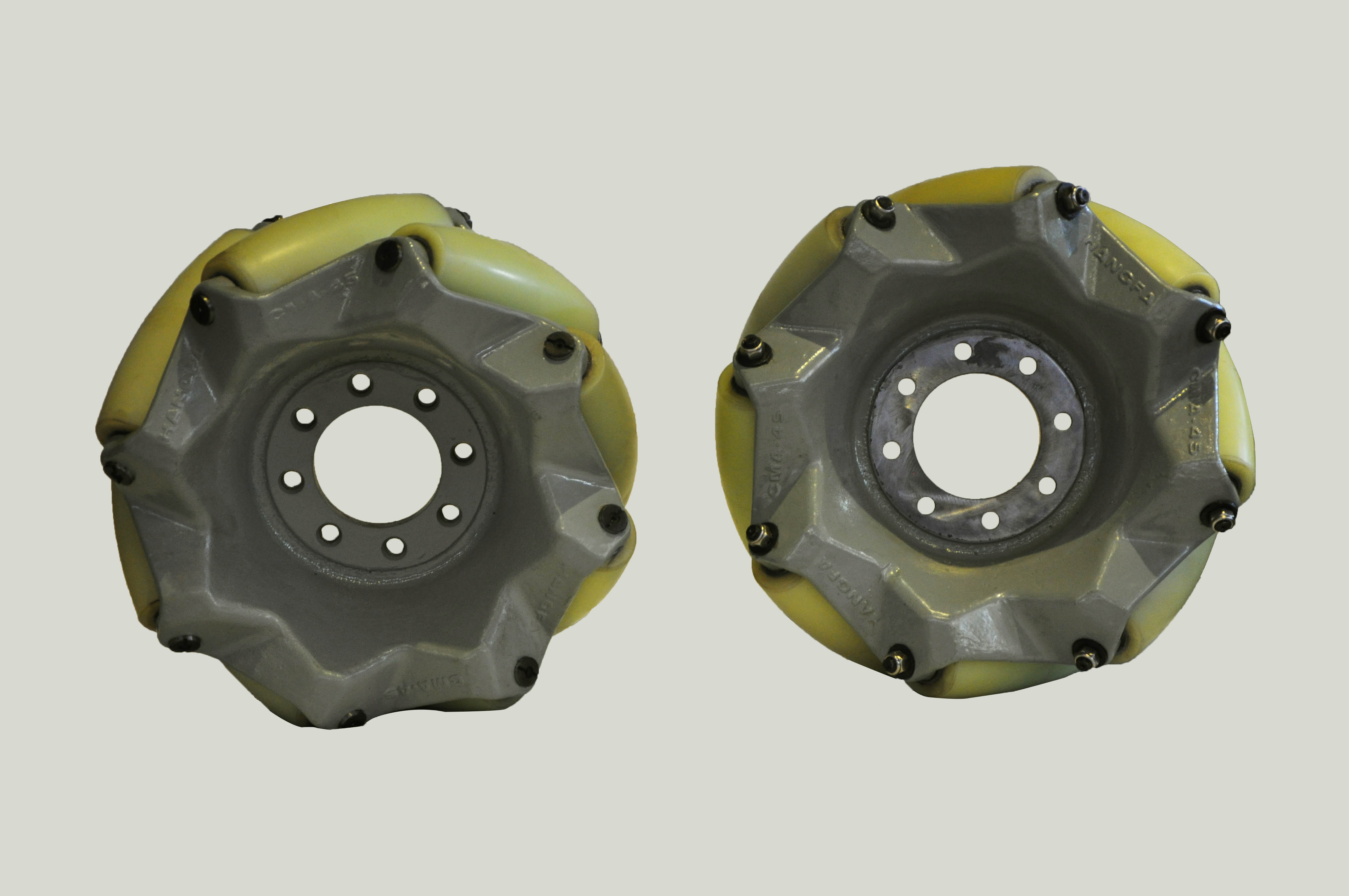

  • Display
    • omniwheel軸測(cè)圖
      Realistic picture
      omniwheel側(cè)視圖
      Realistic picture
      omniwheel正面斜俯視圖
      Realistic picture
      omniwheel背面斜俯視圖
      Realistic picture
  • Document download
  • CMA-45EN.pdf
