Home > Product > omniwheel > CL series > CL-13
  • CL-13 Omni Wheel
  • Product Description
  • CL series omni wheel is 90-degree economy light load omni wheel . there are 2 nylon sliding bearings in every driven wheel . it is aimed to supply the products with high precise ,high economy and high endurance to customers. CL series omni wheel adopts rubber roller and galvanized steel hub , meanwhile it has various mounting dimensions to satisfy different applications.
  • Feature
  • high economy steel hubstrong load capacityreliable, long lifetime, stable quality

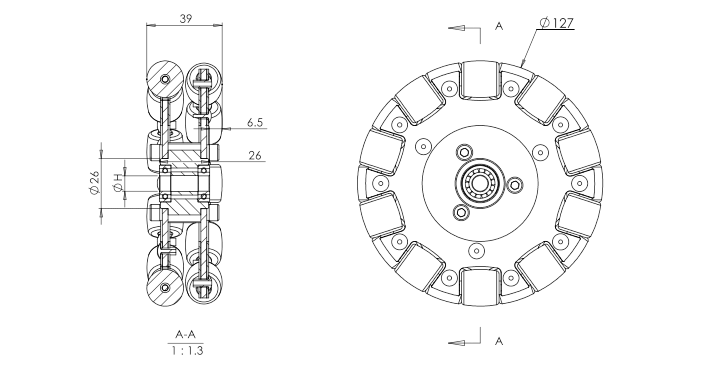

  • Dimension
  • Detailed Images
  • Diameter: 127（5"）mm Wide: 39mm
    Wheels: 20 Bearing: 40
    Bearing Type: Nylon Sliding Bearing Wheel Material: Rubber
    Hub Material: Carbon Steel Hub Surface Treatment: Electro-galvanized
    Mount: Flat key/Hexagon Hole/Set Screws/Bearing supports Typical Middle Hole Size: 5/6/7/8/9/10/12mm
    Weight: 730g Load: 50Kg
  • Display
    • omniwheel軸測圖

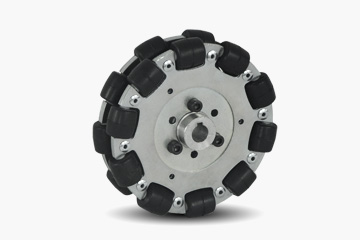

      Realistic picture
      omniwheel側(cè)視圖

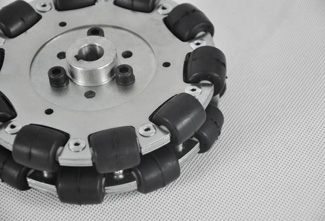

      Realistic picture
      omniwheel正面斜俯視圖

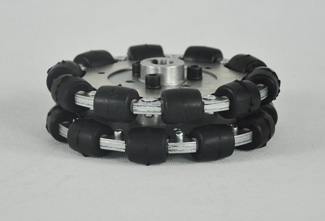

      Realistic picture
      omniwheel背面斜俯視圖

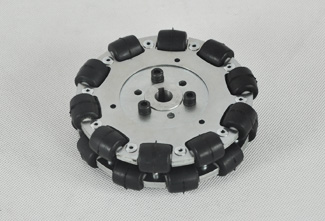

      Detailed picture
  • Document download
  • CL-13CN.pdf
