Home > Product > omniwheel > QL series > QL-15

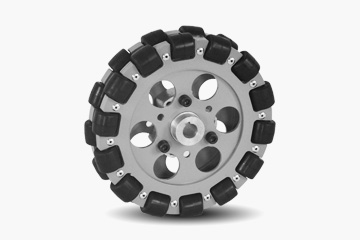

  • QL-15 Omni Wheel
  • Product Description
  • QL series omni wheel is 90-degree precise light load omni wheel . there are 2 ball bearings in every driven wheel . it is aimed to supply products with high precise and high quality to satisfy customers’ various applications . QL series omni wheel has achieved zero clearance in axial direction of driven wheel with steady improvement, particularly suitable for different small robots.
  • Feature
  • zero clearance in axial direction of driven wheelDouble Multi-subdivision design2 bearings embedded in every driven wheelhigh quality rubberhigh-temperature painting technologysteadly improving Ql series omni wheel

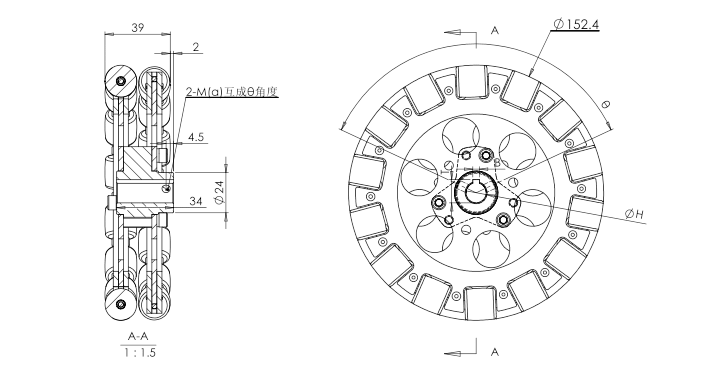

  • Dimension

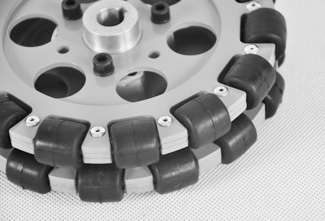

  • Detailed Images
  • Diameter: 152.4（6"）mm Wide: 39mm
    Wheels: 28 Bearing: 56
    Bearing Type: Rolling Bearing Wheel Material: Rubber
    Hub Material: Aluminum Hub Surface Treatment: High-Temperature Painting
    Mount: Flat key/Set Screws Typical Middle Hole Size: 5/6/8/10/12/15/16mm
    Weight: 640g Load: 30Kg
  • Display

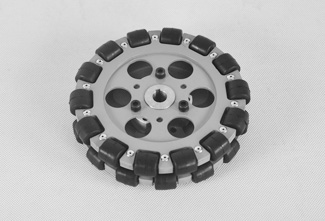

    • omniwheel軸測圖
      Realistic picture

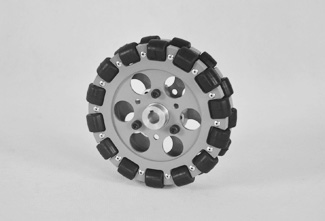

      omniwheel側視圖
      Realistic picture

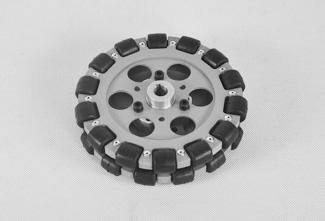

      omniwheel正面斜俯視圖
      Realistic picture
      omniwheel正面斜俯視圖
      Realistic picture
  • Document download
  • QL-15CN.pdf
