Home > Product > omniwheel > HMA series > HMA-40

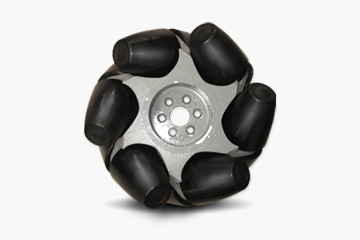

  • HMA-40 Omni Wheel
  • Product Description
  • HMA series omni wheel can supply 1300KG payload maximum. while maintaining a high accuracy .This wheel adopts driven wheels as the supporting structure.The hub use integrated molding process, maximizing the intensity, stiffness and precision. HMA series omni wheel with rolling bearings and polyurethane roller materials can adapt to various indoor and outdoor occasions .
  • Feature
  • integrated molding process hub , high intensity ,high stiffnessRolling Bearingload capacity between 0-1300KGindustrial-grade quality

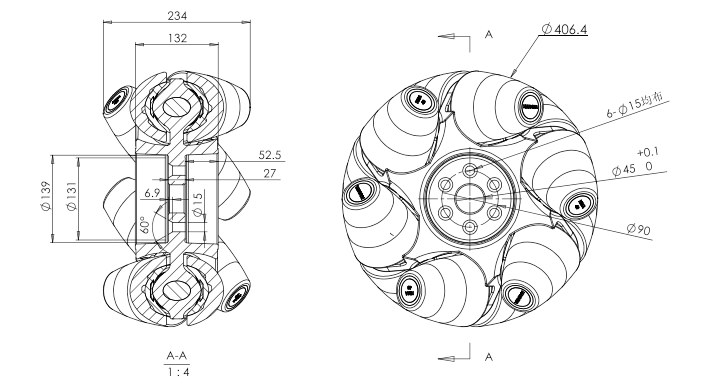

  • Dimension
  • Detailed Images
  • Diameter: 406.4（16"）mm Wide: 234mm
    Wheels: 6×2 Bearing Type: heavy duty Rolling Bearing
    Wheel Material: Polyurethane Hub Material: steel
    Hub Surface Treatment: High-Temperature Painting Mount: Flange
    Flange Plate Thinckness: 27mm Flange Plate Diameter: 131mm
    Flange Cavity Inner diameter: 139mm Typical Middle Hole Size: 45mm
    Weight: 45Kg Load: 1300Kg
  • Display
    • omniwheel軸測(cè)圖

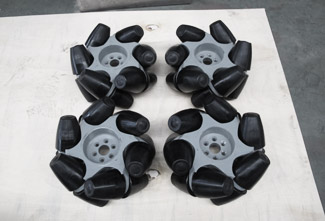

      Realistic picture
      omniwheel側(cè)視圖

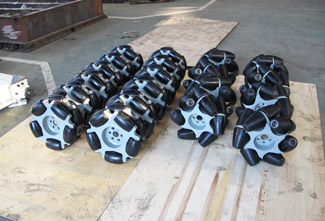

      Realistic picture
  • Document download
  • HMA-40CN.pdf
