  • CMA-36 Omni Wheel
  • Product Description
  • CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
  • Feature
  • integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-4500KGindustrial-grade quality

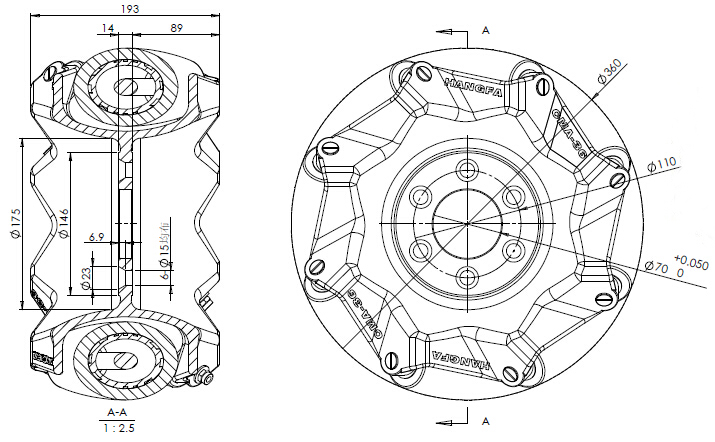

  • Dimension
  • Detailed Images
  • Diameter: 360mm Wide: 193mm
    Wheels: 8 Bearing Type: Heavy Duty Rolling Bearing
    Hub Material: Steel Weight: 31Kg
    Screw Pitch Circle Diameter: 110mm Flange Screw: 6-M14*1.5 Hub Bolt
    Flange Plate Thinckness: 14mm Flange Plate Diameter: 146mm
    Flange Cavity Inner diameter: 166mm Typical Middle Hole Size: 70mm
    Load: 1100Kg Hub Surface Treatment: High-Temperature Painting
  • Display
    • omniwheel側(cè)視圖
      Realistic picture
      omniwheel正面斜俯視圖
      Realistic picture
      omniwheel背面斜俯視圖
      Realistic picture
      omniwheel背面斜俯視圖
      Detailed picture
  • Document download
  • CMA36-EN.pdf
