Home > Product > omniwheel > CMA series > CMA-20A
  • CMA-20A Omni Wheel
  • Product Description
  • CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
  • Feature
  • integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-4500KGindustrial-grade quality

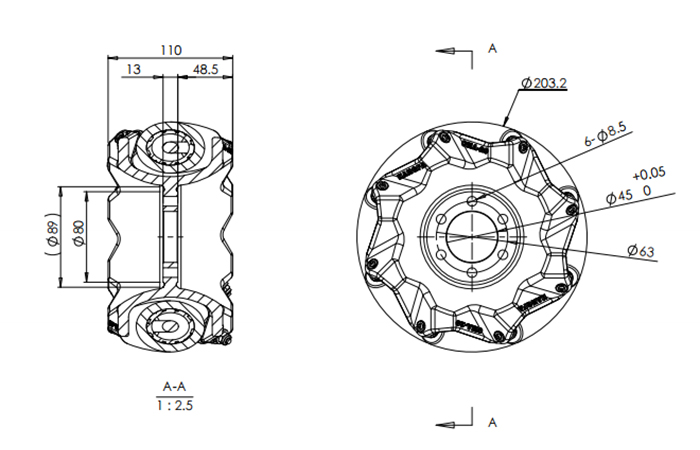

  • Dimension
  • Detailed Images
  • Diameter: 203.2mm Wide: 110mm
    Wheels: 8 Bearing Type: Rolling Bearing
    Load: 240Kg Hub Material: Aluminum
    Flange Screw: 6-M8Hub Bolt Screw Pitch Circle Diameter: 63mm
    Flange Plate Thinckness: 13mm Flange Plate Diameter: 80mm
    Flange Cavity Inner diameter: 89mm Typical Middle Hole Size: 45mm
    Weight: 6Kg
  • Display

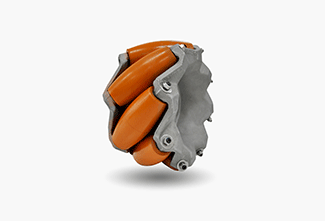

    • omniwheel軸測圖
      Realistic picture

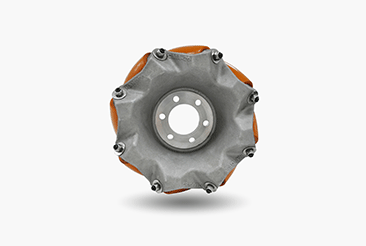

      omniwheel側(cè)視圖
      Realistic picture

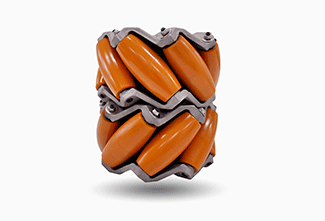

      omniwheel正面斜俯視圖
      Realistic picture

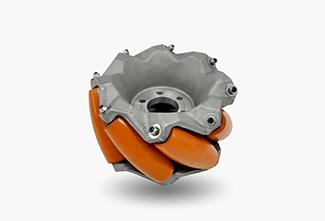

      omniwheel背面斜俯視圖

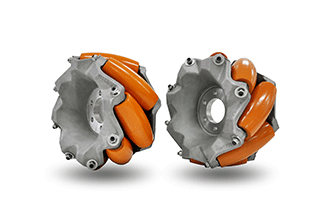

      Detailed picture
  • Document download
  • CMA20A-EN.pdf
