Home > Product > omniwheel > CMA series > CMA-40

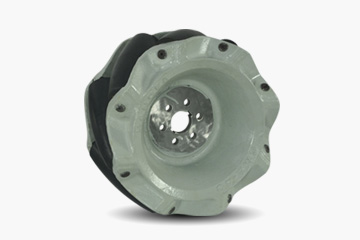

  • CMA-40 Omni Wheel
  • Product Description
  • CMA series omni wheel provide 4500KG payload maximum ,while maintaining high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. All the CMA series omni wheels use rolling bearings, polyurethane materials on the driven wheel surfacewith good performance in stability , quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
  • Feature
  • integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-4500KGindustrial-grade quality

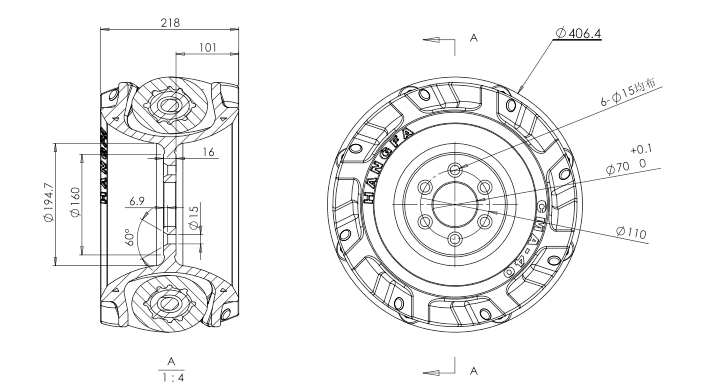

  • Dimension
  • Detailed Images
  • Diameter: 406.4mm Wide: 219mm
    Wheels: 8 Bearing Type: heavy duty Rolling Bearing
    Wheel Material: Polyurethane Hub Material: steel
    Hub Surface Treatment: High-Temperature Painting Mount: Flange
    Flange Plate Thinckness: 16mm Flange Plate Diameter: 160mm
    Flange Cavity Inner diameter: 177mm Typical Middle Hole Size: 70mm
    Weight: 53Kg Load: 1600Kg
  • Display
    • omniwheel軸測圖

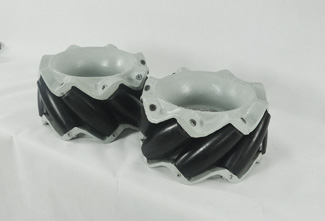

      Realistic picture
      omniwheel側(cè)視圖

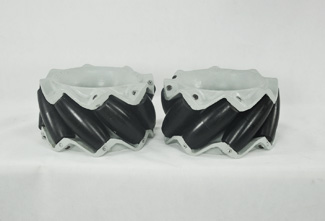

      Realistic picture
      omniwheel正面斜俯視圖

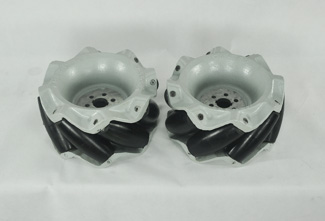

      Realistic picture
      omniwheel背面斜俯視圖
      Realistic picture
  • Document download
  • CMA40-EN.pdf
