- QLM-25 Omni Wheel
- Product Description
- The maximum load of QLM series omni wheel is 2000KG, and the wheel maintains a high accuracy. This wheel uses integrated molding process, maximizing the mechanical properties of materials. The driven wheel material can be rubber or polyurethane according to customers’ requirements. QLM series omni wheel use ball bearing design with good performance in stability ,quietness, durability and omni-direction. They are able to adapt to various indoor and outdoor occasions.
- Feature
- integrated molding process hub , high intensity ,high stiffnessRolling Bearingpayload between 0-2000KGindustrial-grade quality

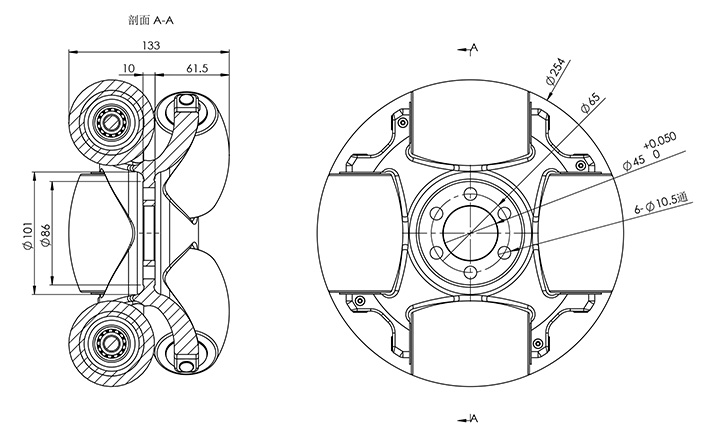

- Dimension
- Detailed Images
Diameter: 254mm Wide: 133mm Flange Cavity Inner Diameter: 101mm Screw pitch circle diameter: 65mm Wheels: 8 Weight: 11Kg Bearing Type: Rolling Bearing Flange Thickness: 10mm Hub Material: Carbon Steel Flange Diameter: 86mm Flange Screws: 6-M10 Payload: 450Kg Middle Hole Size: 45mm
- Display
-

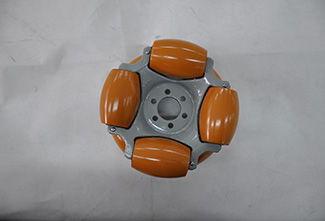

Realistic picture

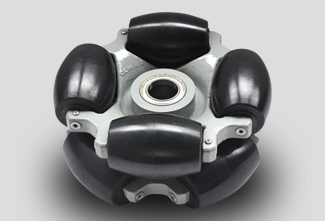

Realistic picture

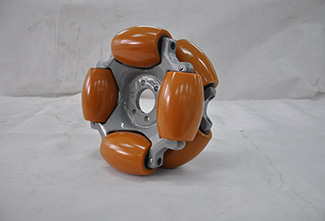

Realistic picture

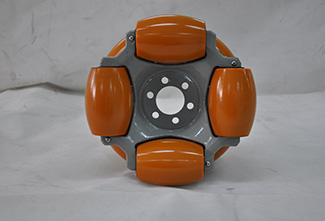

Realistic picture

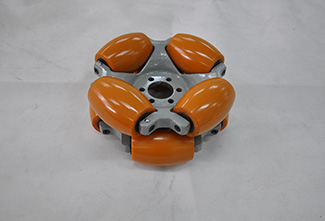

Realistic picture

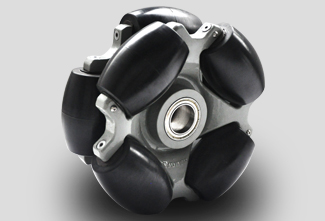

Realistic picture - Document download
- QLM-25CN.pdf
